How to measure usable desk space before buying a bigger desk

Paper can overlap a keyboard even when both fit within the desk's advertised width. A mouse can fit beside them without having room to move. The useful measurement is therefore the arrangement you can work with, rather than a single width or a total surface area.

Start with the desk and equipment you have. Make a top-view sketch, mark the tasks that compete for space and try removing an optional object before pricing a larger surface. This guide addresses horizontal space; height, lighting and signal connections remain separate checks.

Measure three kinds of space

Use one unit throughout your record. Centimetres are used here, with no assumed minimum desk size or universal allowance for a mouse.

Measure the actual top, including any curved edge, cut-out or occupied grommet. Mark where the wall, shelf or other furniture limits equipment movement. Space behind the desk is separate from space on its surface.

OSHA's desk and work-surface guidance considers depth, clutter and access to frequently used equipment together. A square centimetre at the far corner is not automatically useful for a task you repeat throughout the day.

Build the sketch around the work

Locate the keyboard where you use it, then mark its outer outline and any separate support. Work through ordinary pointing tasks with your usual settings and observe where the mouse and operating hand need space. Keep that task zone distinct from the mouse's body dimensions.

OSHA discusses adequate shared space for keyboard and pointing device and keeping the pointer close to the keyboard. Neither establishes the fictional zone or gap in the example below as a personal recommendation. A paper outline is a planning aid, not proof of suitable reach or comfort.

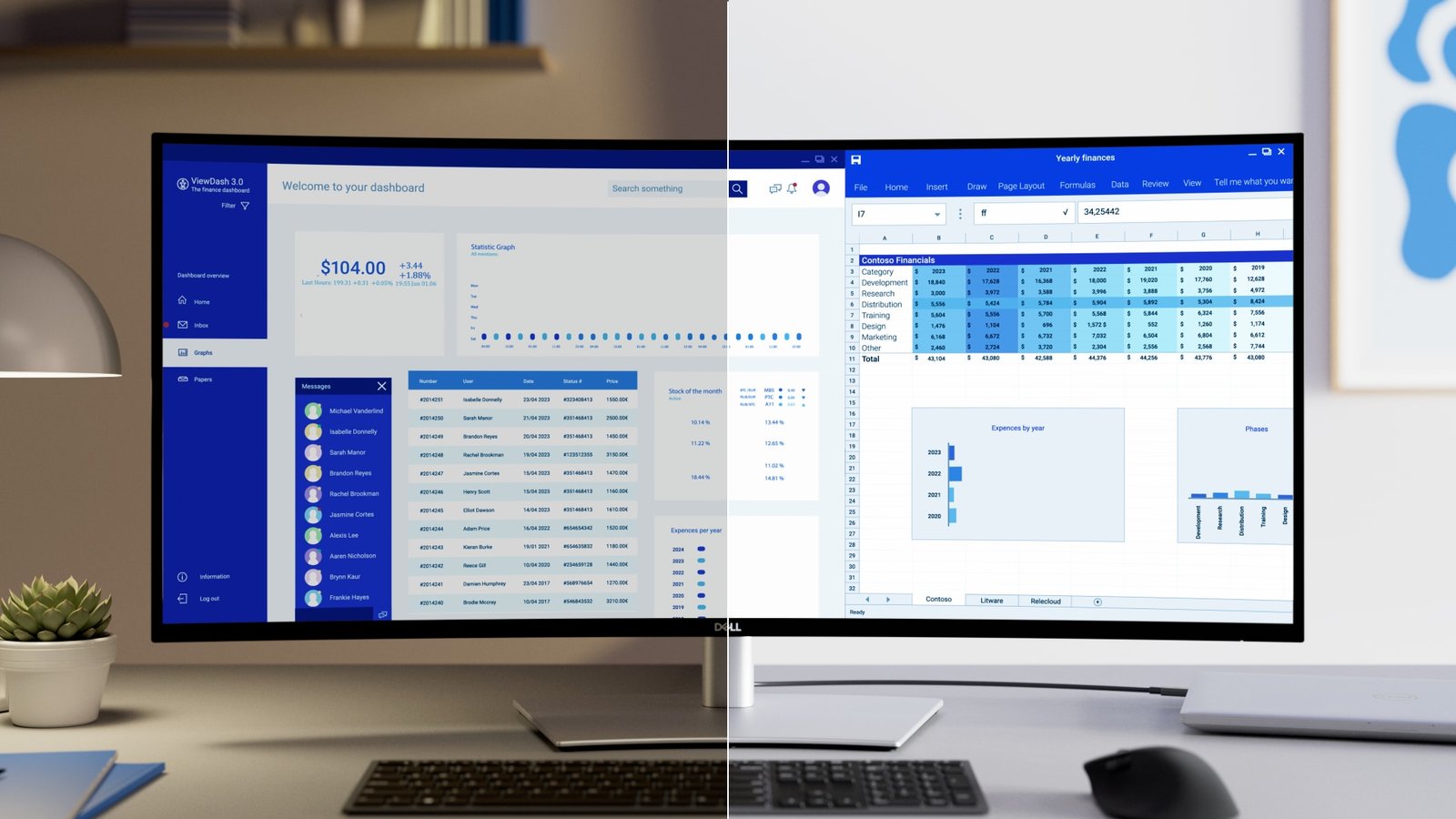

Add the display stand, document area and other essential equipment. Record the stand's contact footprint and any housing projection separately. Check the screen's useful tilt or rotation rather than measuring only its static base. OSHA's monitor guidance considers the display with the other workstation components; viewing distance is not a minimum tabletop-depth formula.

If screen count or connection capability remains undecided, use the display-layout guide. A physical outline does not establish what your computer can drive.

Worked planning: move the paper before replacing the top

Every measurement in this case is fictional. There is no named desk or product, and we have not tested the arrangement. Assume a rectangular 120 × 60 cm top. Coordinates use x from the left edge and y from the user-facing front edge toward the rear.

This reader reserves a 10 cm rear band, from y = 50 to 60, for equipment operation and access rather than ordinary paper or input work. It is a personal planning assumption, not a clearance rule. Part of the display stand occupies that band; it is not a strip that must be completely empty.

The initial paper overlaps the keyboard from x = 20 to 25, a width of 5 cm, and y = 15 to 25, a depth of 10 cm. The conflicting top-view area is 5 × 10 = 50 cm². Both objects are within the top's outer boundary, but their chosen positions conflict.

Now remove the optional object. Try the same 20 × 28 cm paper area at x = 94–114, y = 5–33. The stand, keyboard and mouse zone stay where they were.

Diagram legend: 1 — reserved rear band; 2 — stand contact footprint; 3 — keyboard; 4 — assumed mouse operating zone; 5 — relocated paper. The band includes part of the stand; it is excluded from ordinary working area, not kept empty. The y direction runs from front to rear.

Keep the current desk and input devices for the next trial. The rearrangement removes the recorded overlap without a purchase. The 2 cm gap is an invented remainder, not recommended hand clearance. A rectangle that fits on the right may still be inconvenient to read or reach; keep the change only if it works during the actual task.

Test movement and access before keeping the change

Try typing, pointing, reading the paper, adjusting the screen and making your daily disconnects. Check the modes that matter to you, including desk movement if the surface changes height. A snapshot with everything stationary does not establish the operating arrangement.

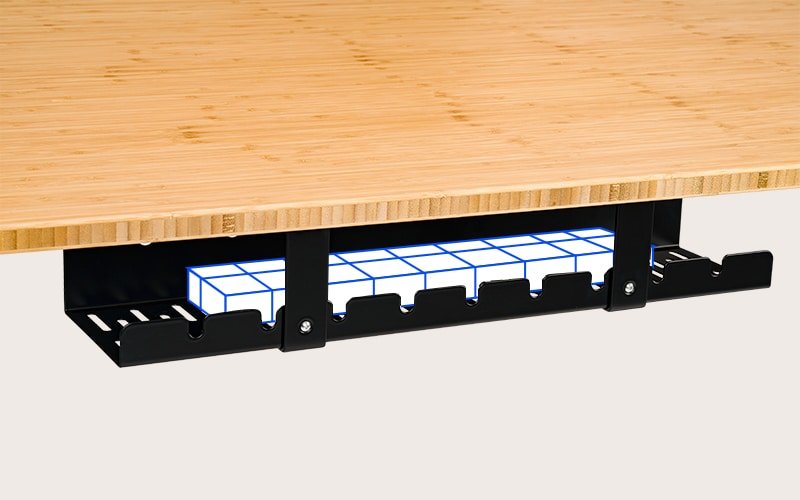

Follow the actual equipment instructions for plug clearance, cable bends, ventilation and movement. The cable-planning guide handles route length and daily access in more detail. Do not borrow the example's rear band as a universal cable allowance.

After moving paper or a lamp, check document lighting and screen reflections at the times you work. A clear rectangle does not prove readable paper or suitable lighting. Then check the keyboard and finished desk height; horizontal fit does not settle the vertical position.

Keep different levels separate in the record. A shelf's top is not extra space on the desktop beneath it, and an outer shelf footprint does not establish a usable opening. If vertical storage is the remaining question, the desk-shelf guide separates footprint, height and internal access. A plan-view overlap across different levels is acceptable only when the actual clearance, access, support and equipment instructions allow it.

Record the conflict that remains

Keep the arrangement when the ordinary tasks, movement and access work together. If they do not, write down the specific remaining problem: paper overlaps the keys, a plug cannot be released, or the mouse needs space currently occupied by an optional object.

Try removing or relocating that object before replacing the surface. Do not move clutter beneath the desk where it blocks legs or feet; OSHA's desk guidance treats that clearance as a separate requirement. A new shelf, arm or top deserves investigation only when it addresses the recorded problem and its own mounting and load conditions are confirmed.

Save the sketch with what you changed and what remains unknown. The useful result is an arrangement you can work with, including a decision to keep your equipment, rather than the largest area total you can calculate.

Sources and limits

The OSHA desk, keyboard, pointer and monitor references linked above were reviewed October 15, 2026 for general workstation assessment. They do not prescribe this example's dimensions, reserved band, mouse zone or gaps.

All case dimensions, coordinates and the diagram are original fictional planning inputs. The arithmetic identifies geometric overlap only. No reach, readability, comfort, medical outcome, mounting compatibility or hardware performance was tested or certified by DeskSpaceLab.
